9116
The 9116 rail clip is typically used on smaller rails with lower lateral loading conditions.
Tel: (+1) 724-695-3406
Featured Products
9120
The 9120 rail clip is generally used in medium sized rail installations.
9220
The 9220 two bolt rail clip is designed for the largest lateral loading conditions.
M71
M71
The M71 rail clip is typically used on smaller rails with lower loading conditions.
| Popular Rails | No Pad | Pad | Bolt Dia. Hex grade bolt grade 8.8 | Total Adjustment | Lateral Resistance |
|---|---|---|---|---|---|
| A45, A55, A65, A75, A100 | M71/*** | M71/***/P | M12 | 10mm | 71 kN |
| 40, 60, 80, 104, 105, 135 | M71/*** | M71/***/P | M12 | 10mm | 71 kN |
Other rail sizes are available.
REPLACEMENT CLIP TOPS & RUBBER PRESSURE BLOCKS
Molyneux International rail clip tops are unique. When the rubber pressure block needs to be replaced, only the rubber component is replaced and not the entire clip top. To find out more contact our teams
| Clip Information | ||||
|---|---|---|---|---|
| Clip | Height | Footprint | A | Length |
| M71 | 40 mm | 45 mm | 6 mm | 65 mm |
M120
M120
The M120 rail clip is typically used on medium sized rail installations.
| Popular Rails | No Pad | Pad | Bolt Dia. Hex grade bolt grade 8.8 | Total Adjustment | Lateral Resistance |
|---|---|---|---|---|---|
| A150, A120, A100, A75, A65 | M120/*** | M120/***/P | M16 | 13mm | 120 kN |
| MRS87, MRS86, MRS67, MRS51 | M120/*** | M120/***/P | M16 | 13mm | 120 kN |
Other rail sizes are available.
REPLACEMENT CLIP TOPS & RUBBER PRESSURE BLOCKS
Molyneux International rail clip tops are unique. When the rubber pressure block needs to be replaced, only the rubber component is replaced and not the entire clip top. To find out more contact our teams
| Clip Information | ||||
|---|---|---|---|---|
| Clip | Height | Footprint | A | Length |
| M120 | 51 mm | 51 mm | 6 mm | 110 mm |
M165
M165
The M165 rail clip is typically used on the largest rails with the highest loading conditions.
| Popular Rails | No Pad | Pad | Bolt Dia. Hex grade bolt grade 8.8 | Total Adjustment | Lateral Resistance |
|---|---|---|---|---|---|
| A150, A120, A100, A75, A65 | M165/*** | M165/***/P | M16 | 16mm | 165 kN |
| MRS87, MRS86, MRS67, MRS51 | M165/*** | M165/***/P | M16 | 16mm | 165 kN |
For other rail sizes please contact our teams.
REPLACEMENT CLIP TOPS & RUBBER PRESSURE BLOCKS
Molyneux International rail clip tops are unique. When the rubber pressure block needs to be replaced, only the rubber component is replaced and not the entire clip top. To find out more contact our teams
| Clip Information | ||||
|---|---|---|---|---|
| Clip | Height | Footprint | A | Length |
| M165 | 51 mm | 51 mm | 8 mm | 180 mm |
9116
9116
The 9116 rail clip is typically used on smaller rails with lower lateral loading conditions.
| Popular Rails | No Pad | Pad | Bolt Dia. Hex grade bolt grade 8.8 | Total Adjustment | Lateral Resistance |
|---|---|---|---|---|---|
| A45, A55, A65, A75, S20, S30, S41 | 9116/*** | 9116/***/P | M16 | 13mm | 70 kN |
| ASCE60, ASCE80, ASCE85, 105CR | 9116/*** | 9116/***/P | M16 | 13mm | 70 kN |
Other rail sizes are available.
REPLACEMENT CLIP TOPS & RUBBER PRESSURE BLOCKS
Molyneux International rail clip tops are unique. When the rubber pressure block needs to be replaced, only the rubber component is replaced and not the entire clip top. To find out more contact our teams
| Clip Information | |||||
|---|---|---|---|---|---|
| Clip | Height | Footprint | A | Length | Weight |
| 9116 | 54 mm | 59 mm | 8 mm | 80 mm | 0.95 kgs |
9120
9120
The 9120 rail clip is generally used in medium sized rail installations.
| Popular Rails | No Pad | Pad | Bolt Dia. | Total Adjustment | Lateral Resistance |
|---|---|---|---|---|---|
| A150. A120, A100, A75, A65 | 9120/*** | 9120/***/P | M20 | 15 mm | 120 kN |
| 175CR, 135CR, 105CR, 104CR | 9120/*** | 9120/***/P | M20 | 15 mm | 120 kN |
Other rail sizes are available.
REPLACEMENT CLIP TOPS & RUBBER PRESSURE BLOCKS
Molyneux International rail clip tops are unique. When the rubber pressure block needs to be replaced, only the rubber component is replaced and not the entire clip top. To find out more contact our teams
| Clip Dimensions | |||||
|---|---|---|---|---|---|
| Clip | Height | Footprint | A | Length | Weight |
| 9120 | 66 mm | 78 mm | 10 mm | 102 mm | 1.70 kgs |
9220
9220
The 9220 two bolt rail clip is designed for the largest lateral loading conditions.
| Popular Rails | No Pad | Pad | Bolt Dia. | Total Adjustment | Lateral Resistance |
|---|---|---|---|---|---|
| A150, A120, A100, A75, A65 | 9220/*** | 9220/***/P | M20 | 20mm | 200 kN |
| 175CR, 135CR, 105CR, 104CR | 9220/*** | 9220/***/P | M20 | 20mm | 200 kN |
Other rail sizes are available.
REPLACEMENT CLIP TOPS & RUBBER PRESSURE BLOCKS
Molyneux International rail clip tops are unique. When the rubber pressure block needs to be replaced, only the rubber component is replaced and not the entire clip top. To find out more contact our teams
| Clip | Height | Footprint | A | Length | Weight |
|---|---|---|---|---|---|
| 9220 | 66 mm | 81 mm | 11 mm | 165 mm | 3.40 kgs |
Assembly Instructions
Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium, totam rem aperiam,Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium, totam rem accusantium doloremque laudantium, totam

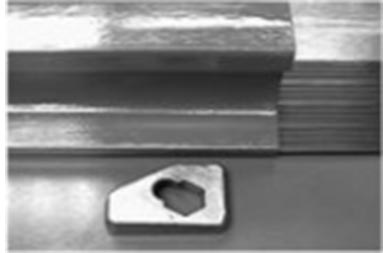

Weld the clip base

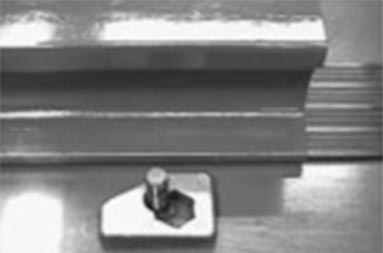

Insert the bolt

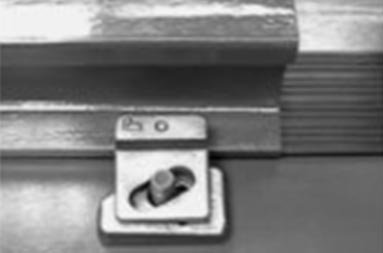

Install the clip top

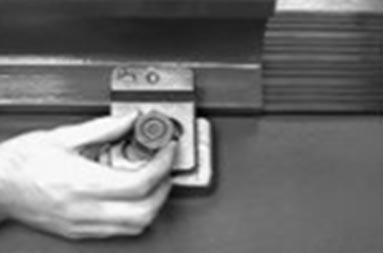

Hand tighten the nut

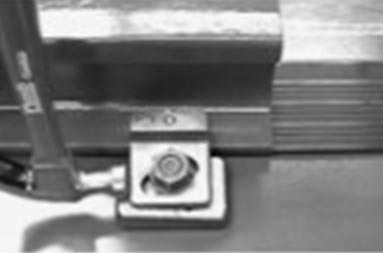

Adjust the clip top from the side

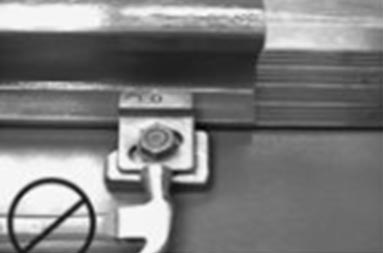

Do not adjust the clip top from the rear

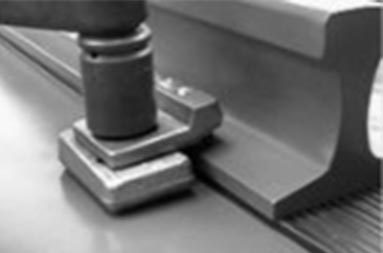

Tighten the nut to the required torque

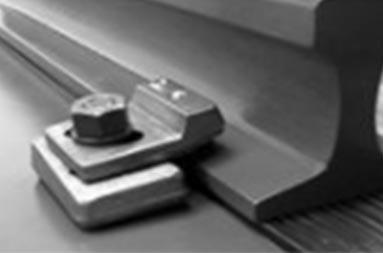

The assembled up

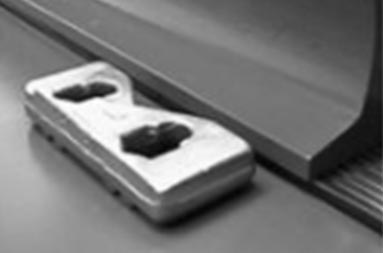

The 9219 two bolt base

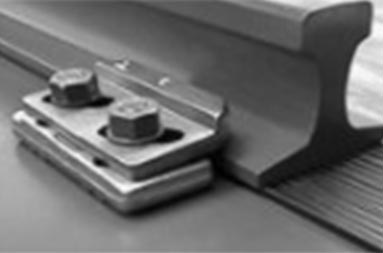

The assembled 9219 rail clip
